Solar Batteries in Series: Unlocking Higher Voltage for Your Energy Storage System

If you're looking to expand your solar power system's capacity, you've likely encountered the terms "series" and "parallel" connections. Understanding how solar batteries in series work is a game-changer for homeowners and businesses aiming for energy independence. It's not just about adding more batteries; it's about architecting a system that matches your specific energy needs efficiently and safely. Let's demystify this crucial concept and explore how it powers more resilient and capable energy storage solutions.

What Are Series Connections? The Voltage Boost

Connecting solar batteries in series is a fundamental electrical configuration. Imagine linking batteries like train cars in a single line. When you connect the positive terminal of one battery to the negative terminal of the next, you are creating a series connection. The key outcome? The voltages add together, while the capacity (measured in amp-hours, Ah) remains the same as that of a single battery.

For instance, connecting four 12-volt, 200Ah batteries in series results in a 48-volt battery bank with a capacity of 200Ah. This higher voltage "string" becomes a single unit for your inverter. This is essential because most modern, high-power inverters and battery storage systems are designed to operate at 24V, 48V, or even higher voltages for commercial applications.

Image source: ElectricalTechnology.org (Diagram illustrating series connection)

Series vs. Parallel: A Critical Distinction

It's easy to confuse series with parallel connections. Here’s a simple breakdown:

Many robust systems use a series-parallel combination to achieve both the necessary voltage and the desired total energy storage capacity. Proper design here is non-negotiable for performance and longevity.

Why Go for Higher Voltage? The System Benefits

You might wonder, why bother with higher voltage? The advantages are significant, especially as system size grows:

• Reduced Energy Loss: Higher voltage systems operate at lower current for the same power (Power = Voltage x Current). Lower current means significantly reduced resistive (I²R) losses in the wiring. This translates to more of your harvested solar energy making it to your appliances, not wasted as heat in the cables.
• Thinner, More Cost-Effective Cabling: Since current is lower, you can use thinner gauge cables, which are easier to install and less expensive. This is a major cost saver for installations where batteries are located some distance from the inverter.
• Compatibility with High-Power Inverters: Most inverters above 3-4 kW are designed for 48V or higher DC input. Connecting solar batteries in series to create this voltage is the standard and most efficient way to interface with these powerful units.
• System Efficiency: High-voltage battery banks often align better with the maximum power point tracking (MPPT) voltage ranges of solar charge controllers, allowing your system to operate in its "sweet spot" more often.

Practical Considerations and Safety

While powerful, series connections demand careful attention. The most critical rule is using identical batteries. They should be the same brand, model, age, and state of charge. Mixing batteries can lead to imbalance, where one battery gets overcharged while another remains undercharged, drastically reducing the lifespan of the entire bank.

Furthermore, a series string is only as strong as its weakest link. If one battery in a series string fails, the entire circuit can be broken. This is where advanced Battery Management Systems (BMS) become indispensable. A quality BMS monitors each cell or module, ensuring balance, preventing overcharge/discharge, and safeguarding the system.

Highjoule's Intelligent Solutions for Series Configurations

At Highjoule, we engineer our energy storage systems with these complexities in mind. Our approach simplifies safe and scalable series configurations for our clients.

Our H-Series Modular Battery Systems are designed from the ground up for seamless series and parallel scalability. Each intelligent battery module contains an integrated, communication-enabled BMS that talks to the others and to the central inverter. When you connect Highjoule H-Series batteries in series, the system automatically recognizes the configuration, manages cell balancing across the entire high-voltage string, and provides detailed diagnostics on the health of each module.

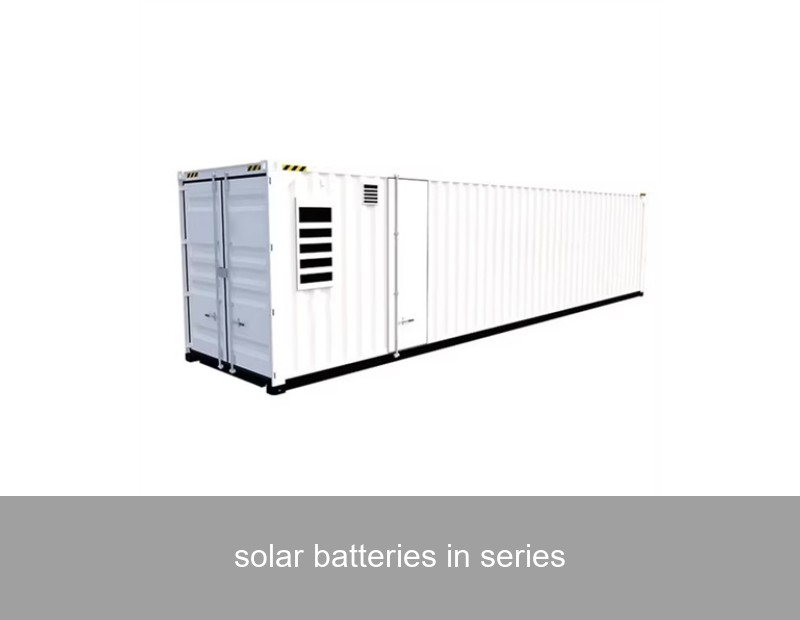

For commercial and industrial applications, our Highjoule C.I. Stack takes this further. These are high-voltage, rack-mounted battery cabinets pre-configured with series connections internally to deliver 400V or 800V DC directly. This "plug-and-play" high-voltage approach drastically reduces on-site installation complexity and cost, while our proprietary EnergyOS platform provides granular monitoring and control over the entire storage asset.

Image source: Solar Power World Online (Commercial battery installation)

Real-World Case: A German Dairy Farm's Success

Let's look at a concrete example from Bavaria, Germany. A mid-sized dairy farm with a 120 kWp rooftop solar array wanted to increase self-consumption from 35% to over 80% and provide backup power for critical cooling and milking systems.

The Challenge: They needed a battery bank capable of delivering high power (over 50 kW) to start large refrigeration compressors, located 50 meters from the main electrical room. A low-voltage system would have required prohibitively thick and costly copper cables.

The Highjoule Solution: We installed a system using two parallel strings of Highjoule C.I. Stack batteries in series, creating a 800V DC battery bank. This high voltage allowed the use of standard, cost-effective cabling with minimal power loss over the distance.

• System Size: 240 kWh storage capacity
• Configuration: Series-parallel to achieve 800V nominal voltage
• Result: The farm now achieves 82% self-consumption of its solar power. The high-voltage battery bank seamlessly handles the peak power demands of heavy equipment. In its first year, the system saved the farm over €28,000 in energy costs and provided reliable backup during two grid outages, preventing spoilage of product. (Fraunhofer ISE, a leading German research institute, confirms such system efficiencies).

Making the Decision for Your Property

So, is connecting solar batteries in series the right move for you? The answer depends on your energy profile, inverter specifications, and physical layout. For most residential systems using a 48V inverter, connecting four 12V lithium batteries in series is the standard path. For larger commercial systems, starting with a native high-voltage battery product like Highjoule's C.I. Stack is often the most efficient and reliable choice.

The key is to move beyond seeing batteries as simple boxes and to view them as a core electrical component that must be perfectly matched to the rest of your system's architecture. Proper design, quality components with robust BMS, and professional installation are not optional—they are the foundation of a safe, high-performing, and long-lasting energy asset.

What's the peak power demand you need your battery bank to support, and how might a higher voltage configuration help you meet that goal more efficiently and reliably?
