Understanding Solar Panel Technical Specifications: Your Guide to Smarter Energy Choices

So, you've decided to explore solar energy. That's fantastic! But as you start comparing options, you're quickly met with a dizzying array of numbers, acronyms, and solar panels technical specifications. Terms like "monocrystalline," "temperature coefficient," and "N-type" can feel like a foreign language. Don't worry, you're not alone. Understanding these specs isn't about becoming an engineer—it's about making an informed investment in your home or business's energy future. This guide will decode the key specifications, explain why they matter for your specific location, and show you how pairing them with the right battery storage system, like those from Highjoule, unlocks the full potential of your solar investment.

The Phenomenon: More Than Just a Blue Panel

Imagine two neighbors in Southern California or Southern Spain. Both install a 10 kW solar system. A year later, one is thrilled with their energy bills, while the other is puzzled by lower-than-expected production. The difference often lies in the solar panels technical specifications chosen and how well they were matched to the local climate and paired with complementary technology. Solar panels are not a commodity; their performance and longevity are precisely defined by their technical specs. Choosing the right panel based on these specs is the first, crucial step toward energy resilience.

Image: A close-up view of solar cell technology. The quality of these cells directly impacts key specifications like efficiency and temperature coefficient. (Source: Unsplash)

Key Solar Panel Technical Specifications Decoded

Let's break down the most critical specs you'll encounter on a datasheet and what they mean for you.

Power Output & Efficiency: The "Nameplate" vs. Real-World

The most advertised spec is the panel's power rating, measured in Watts (W). A 400W panel produces 400 watts under Standard Test Conditions (STC). But here's the catch: STC is a lab condition (25°C cell temperature). In the real world, panels on your hot roof rarely operate at 25°C.

• Efficiency: This percentage tells you how much sunlight hitting the panel is converted to electricity. Higher efficiency (e.g., 22% vs. 18%) means you generate more power in the same roof space.
• Why it matters: For roof-space-constrained homes in Europe or urban US settings, high-efficiency panels maximize energy yield. For large commercial roofs, standard efficiency might be more cost-effective.

Temperature Coefficient: The Heat Penalty

This is arguably the most overlooked yet crucial spec for sunny climates. It tells you how much power a panel loses for every degree above 25°C. It's expressed as a negative percentage per °C (e.g., -0.34%/°C).

• A panel with a -0.34%/°C coefficient will lose 3.4% of its output on a day when the cell temperature hits 35°C.
• Panels with a lower (closer to zero) temperature coefficient perform better in hot environments like Arizona, Texas, or the Mediterranean.

Degradation & Warranty: The Long-Term Promise

Solar panels degrade slowly over time. A quality panel has a lower annual degradation rate (e.g., 0.25-0.5% per year) and a strong performance warranty (often 90% output after 12 years, 85% after 25 years). This directly impacts your 25-year financial projections.

Cell Technology: P-Type vs. N-Type

This gets into the silicon chemistry. Traditional P-type cells are common and cost-effective. Advanced N-type cells (like TOPCon or HJT) offer higher efficiency, a lower temperature coefficient, and significantly lower degradation rates. For a project where maximizing lifetime energy harvest is key, N-type panels, while sometimes a higher upfront investment, often provide superior long-term value. At Highjoule, when we design integrated systems for demanding commercial or off-grid applications, we frequently recommend N-type panels for their resilience and consistent output.

From Data to Reality: A German Case Study

Let's look at a real-world example. A medium-sized manufacturing facility in Bavaria, Germany, wanted to reduce its grid dependence and carbon footprint. They installed a 250 kW solar array. Initially, they considered standard P-type panels with a temperature coefficient of -0.41%/°C. However, after a detailed analysis that considered Bavaria's cold winters but surprisingly warm summers, they opted for higher-tier N-type panels with a coefficient of -0.29%/°C.

The Result: During a peak summer week with consistent cell temperatures around 48°C, the N-type array outperformed the projected output of the P-type array by over 8%. This translated to approximately 320 kWh of additional clean energy produced that week alone, which was immediately stored in the on-site Highjoule HI-Stack Commercial Battery System for use during evening production hours. Over the system's lifetime, this performance differential, driven by a better temperature coefficient, adds tens of thousands of kilowatt-hours of extra generation. You can explore more on real-world solar performance from the National Renewable Energy Laboratory (NREL).

Image: A commercial solar installation. The technical specifications of each panel compound to determine the total system's financial and energy output. (Source: Unsplash)

Beyond the Panels: The Critical Role of System Integration

Optimizing your solar panels technical specifications is only half the battle. To truly achieve energy independence, you must manage the energy you produce. This is where intelligent storage and energy management become non-negotiable.

• The Duck Curve Challenge: In sunny regions like California, the grid sees a massive surge of solar power midday (flattening the "duck's belly") and a steep ramp-up demand at sunset ("the duck's neck"). Without storage, excess solar is often wasted or exported at low value.
• The Solution - Storage: A battery storage system captures your midday solar surplus and discharges it when you need it most—during peak evening rates, during grid outages, or on cloudy days. This turns your solar array from a daytime-only resource into a 24/7 power plant.

How Highjoule's Expertise Elevates Your Solar Project

This is where Highjoule's two decades of experience come into play. We don't just supply components; we provide integrated, intelligent power solutions. Our role begins where the solar panel specs end.

When you partner with Highjoule, our energy experts analyze your local climate, energy consumption patterns, and goals. We then model how different solar panel technical specifications will perform in your specific environment and, crucially, how they will interact with our storage systems.

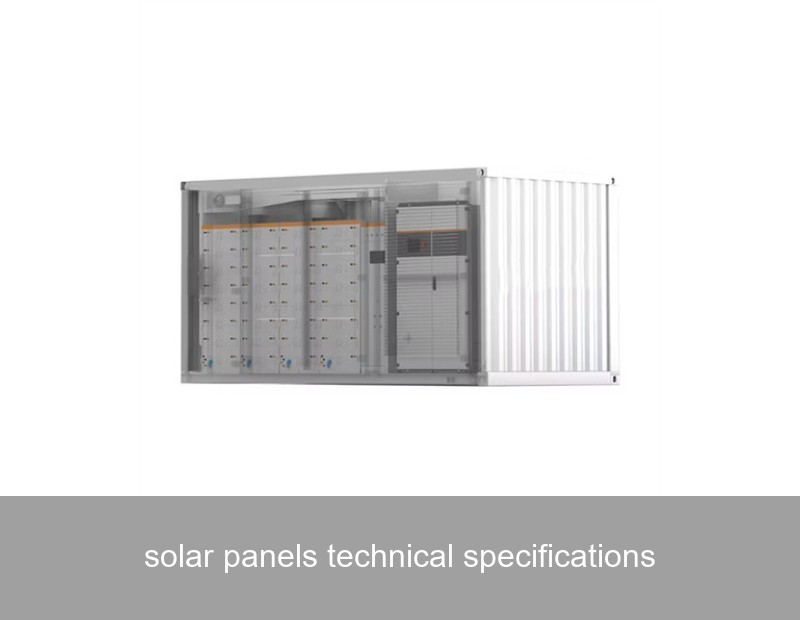

For instance, our HI-Stack Commercial & Industrial (C&I) energy storage system is engineered for high cycle life and robust power output, perfectly complementing a high-yield solar array. For residential clients, the Highjoule Home Energy Hub seamlessly integrates with your solar inverter, using advanced algorithms to decide the most economical moment to store solar energy or draw from the battery, all based on real-time production data from your specific panels.

Furthermore, our GridResilient Microgrid Controller can manage an entire ecosystem of solar, storage, and backup generators for critical facilities, ensuring that the premium performance you paid for in your solar specs translates into guaranteed, usable power. Learn about the importance of system integration from the U.S. Department of Energy.

What's Your Energy Independence Goal?

Decoding solar panels technical specifications is the foundation of a smart solar investment. But the ultimate goal isn't just to generate kilowatt-hours—it's to have reliable, cost-effective, and controllable power on your terms. Whether you're a homeowner in Florida tired of storm-related outages, a factory manager in Italy seeking to cap energy costs, or a community developing a microgrid, the synergy between high-performance solar and intelligent storage is the key.

We invite you to consider this: What specific energy challenge—be it unpredictable bills, grid instability, or a sustainability target—are you hoping your solar investment will solve? How might adding a layer of intelligent storage transform your return on investment and your peace of mind?
