Solar Plate Connection Lagane Ka Tarika: A Professional's Guide to Efficient Solar Panel Wiring
So, you're looking to harness the sun's power, and the phrase "solar plate connection lagane ka tarika" – the method of connecting solar panels – is on your mind. It's the crucial step that transforms individual panels into a powerful, energy-generating system. Getting this wiring right isn't just about making a connection; it's about maximizing efficiency, ensuring safety, and guaranteeing the longevity of your investment. Whether you're a homeowner in California, a business owner in Germany, or an energy enthusiast anywhere, understanding the principles behind proper solar panel interconnection is key to a successful installation. This guide will walk you through the professional methods, best practices, and modern solutions that go beyond just connecting wires.
Table of Contents
The Connection Phenomenon: More Than Just Wires
Think of your solar array as a team. Solar plate connection lagane ka tarika is how you organize that team. A haphazard connection leads to underperformance, potential hotspots, and even system failure. The right configuration, however, ensures each panel works in harmony with the others, pushing energy smoothly to your inverter and then into your home or business. The goal is to minimize energy loss in the cables (a concept called "voltage drop") and match the electrical characteristics of your solar array to your inverter's optimal input range. It's a balancing act between voltage, current, and power that defines your system's daily yield.
Core Wiring Methods: Series vs. Parallel
There are three fundamental ways to connect solar panels, each with its own purpose and electrical outcome.
Series Connection
Connecting the positive terminal of one panel to the negative terminal of the next creates a series string. This method is like connecting batteries end-to-end.
- Effect: System voltage adds up, while the current (amperage) stays the same as a single panel.
- Best For: Most grid-tied residential and commercial systems, especially when the array is far from the inverter. Higher voltage reduces energy loss over long wire runs.
- Consideration: If one panel in the series is shaded or dirty, it can significantly reduce the output of the entire string (like a weak link in a chain).
Parallel Connection
Connecting all positive terminals together and all negative terminals together forms a parallel circuit.
- Effect: System current adds up, while the voltage stays the same as a single panel.
- Best For: Systems with lower voltage requirements, like some off-grid setups charging 12V or 24V battery banks directly. It's also more tolerant of partial shading.
- Consideration: Higher currents require thicker, more expensive cables to handle the load safely and prevent overheating.
Hybrid (Series-Parallel) Connection
This is the most common configuration for larger systems. You first create several series strings to achieve the desired voltage, then connect those strings in parallel to achieve the desired total current and power.
Image Source: altestore.com - Diagram illustrating series-parallel solar array wiring.
Choosing the right tarika (method) depends on your site conditions, equipment specifications, and local electrical codes. This is where partnering with an expert pays off.
Critical Components for a Robust Connection
Professional wiring isn't just about the panels. These components ensure safety and performance:
- MC4 Connectors: The industry-standard, weatherproof plug-and-play connectors used on most modern panels. They make secure, waterproof connections relatively easy.
- Combiner Boxes: The central hub where parallel strings meet. They house fuses or circuit breakers for each string (protecting against reverse currents) and provide a single output to the inverter.
- DC Disconnect Switch: A mandatory safety switch that allows electricians to isolate the DC current from the solar array for maintenance.
- Properly Sized Cabling: Using the correct wire gauge (thickness) is non-negotiable. Undersized cables are a major fire risk. The National Electrical Code (NEC) provides strict guidelines for this.
Real-World Case: A German Dairy Farm's Efficient Turnaround
Let's look at a concrete example from Bavaria, Germany. A mid-sized dairy farm with irregular roof sections and occasional shading from a large silo installed a 50 kWp solar system. The initial, simplistic series wiring led to disproportionate power drops whenever partial shading occurred.
The Solution & Data: A system redesign implemented an optimized series-parallel connection lagane ka tarika, grouping panels on similar roof planes into separate strings. Crucially, they integrated a Highjoule H-Series hybrid inverter with advanced Maximum Power Point Tracking (MPPT) technology. This inverter can independently optimize the power harvest from each string, mitigating the shading impact.
| Metric | Before Optimization | After Optimization (with Highjoule Inverter) |
|---|---|---|
| Annual Energy Yield | ~48,000 kWh (estimated with losses) | 52,500 kWh (measured) |
| System Efficiency | ~14.5% | ~15.8% |
| Return on Investment Timeline | Projected 8.5 years | Revised to 7 years |
The farm now meets over 60% of its energy needs with solar, proving that a sophisticated connection strategy paired with intelligent hardware is a game-changer for commercial viability.
Beyond Wiring: The Role of Intelligent Energy Management

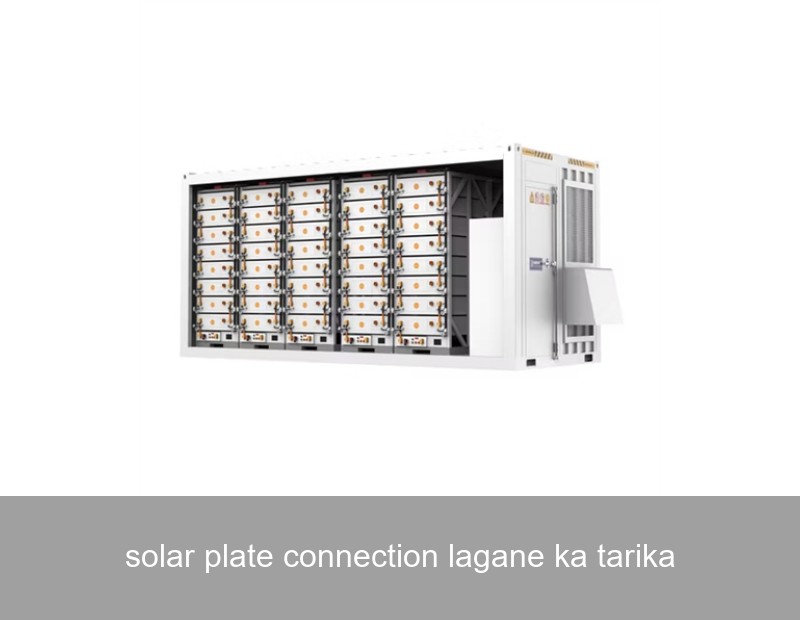

Today, the conversation about solar plate connection extends beyond the physical DC wiring. True modern systems are about integration. This is where companies like Highjoule redefine the standard. Our H-Series All-in-One Energy Storage Systems are designed to seamlessly integrate with your solar array, handling the complex interplay between solar production, battery storage, grid interaction, and home consumption.
Image Source: Highjoule.com - Energy flow in an integrated solar and storage system.
Think of it this way: you can have the best physical panel connections, but if your system's "brain" – the inverter and energy management software – isn't smart, you're leaving savings on the table. Highjoule systems feature:
- Multi-MPPT Inverters: Like the Bavarian farm used, these allow for connection of multiple, differently oriented panel strings to a single unit, each independently optimized.
- Built-in Safety & Grid Services: Our systems comply with the latest grid codes in the EU (VDE-AR-N 4105) and the US (UL 1741 SA), ensuring safe, reliable operation that utilities trust.
- AI-Powered Energy Scheduling: Our software doesn't just store energy; it learns your consumption patterns and automatically decides the most economical time to use solar power, battery power, or grid power, maximizing self-consumption and bill savings.
Professional Tips for a Flawless Installation
As a final takeaway, here are key professional considerations for your solar connection project:
- Always Consult a Certified Installer: Local codes, roof conditions, and equipment compatibility require professional assessment. The Solar Energy Industries Association (SEIA) is a good resource to find qualified installers in the US.
- Plan for the Future: Use a combiner box with extra ports. You might want to add more panels later.
- Label Everything: Clearly label all strings, cables, and breakers in the combiner box. This is a lifesaver for future troubleshooting.
- Think Holistically: Your solar panels are one part of an energy ecosystem. Consider from the start if you want to add storage, like a Highjoule battery system, to capture excess solar for use at night or during outages.
Given the rapid evolution of both solar technology and global energy markets, what is the one feature you believe will become non-negotiable in a home or business energy system within the next five years – is it complete grid independence, AI-driven cost optimization, or something else entirely?
